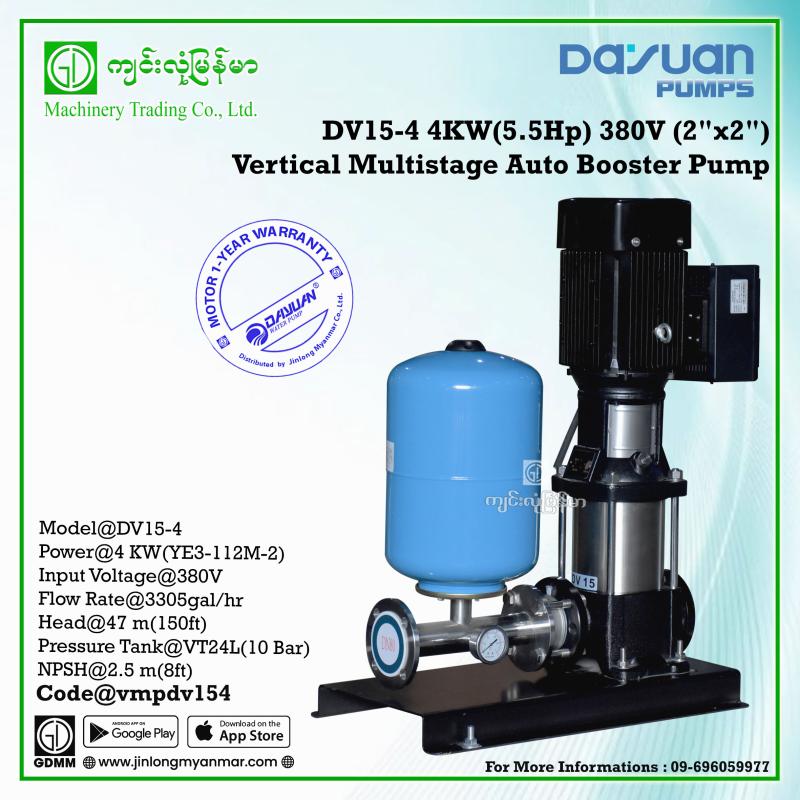

| Model | DV15-4 |
| Type | Vertical |
| Power | 4 KW(YE3-112M-2) |
| Voltage | 380 V |
| Frequency | 50 Hz |
| Speed | 2900 r/min |
| Controller | PDH30-4T004-E-NP |
| Pressure Tank | VT24L(10 Bar) |
| Ins; Class | F |
| Flow | 15 m3/h(3305gal/hr) |
| Max; Head | 47 m(150ft)(4.6 Bar) |
| NPSH | 2.5 m(8ft) |
| Inlet / Outlet | 2” / 2”(DN50) |
| Dimension | 870x470x1100 mm |
| Weight | 64 kg(N.W) /68 kg(G.W) |
