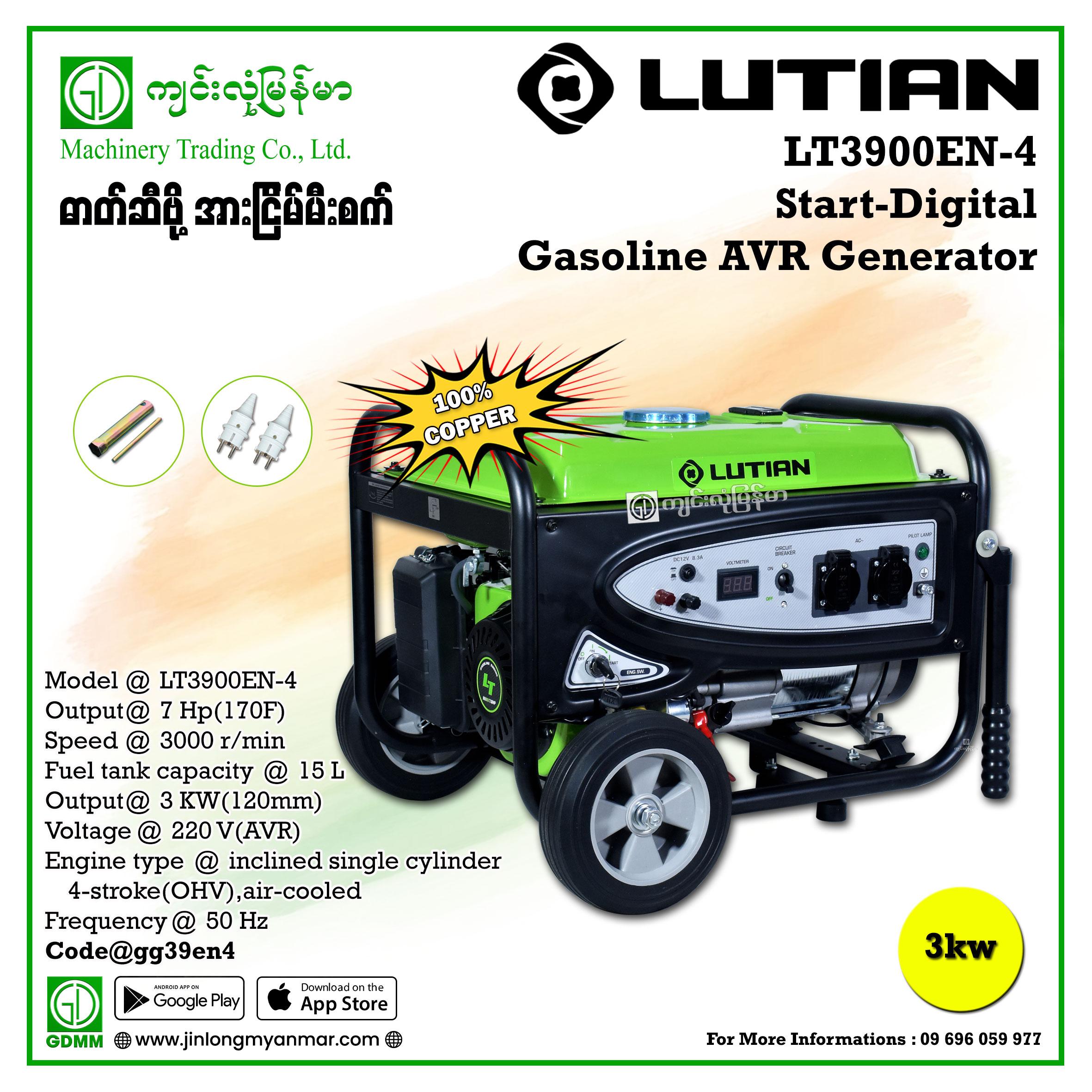

| Model | LT3900EN-4 |
| Engine type | inclined single cylinder 4-stroke(OHV),air-cooled |
| Engine Power | 7 Hp(170F) |
| Bore x Stroke | 70 x 54 mm |
| Displacement | 208 CC |
| Speed | 3000 r/min |
| Oil capacity | 0.6 L |
| Fuel tank capacity | 15 L |
| Ignition system | transistorized ignition |
| Compression ratio | 8:01 |
| Dynamo type | 2-pole,copper wire |
| Max; Output | 3 KW(120mm) |
| Voltage | 220 V(AVR) |
| Frequency | 50 Hz |
| Start System | Key Start |
| AC Socket | 2pin Lock Joint |
| DC Charging | 12Vdc 8.3A |
| Over current breaker | 11.8~13.57 A |
| Battery(Optional) | 12Vdc/7Ah(6-FDQ-7AH) |
| Dimension | 605x445x432 mm |
| Weight | 50 kg |
